Bel Canto Design S300iu
USD 1.100
.JPG)
Vendido porDescripción

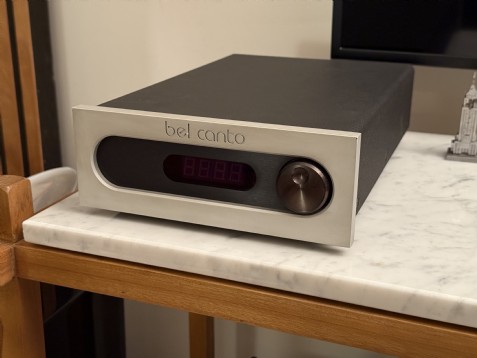

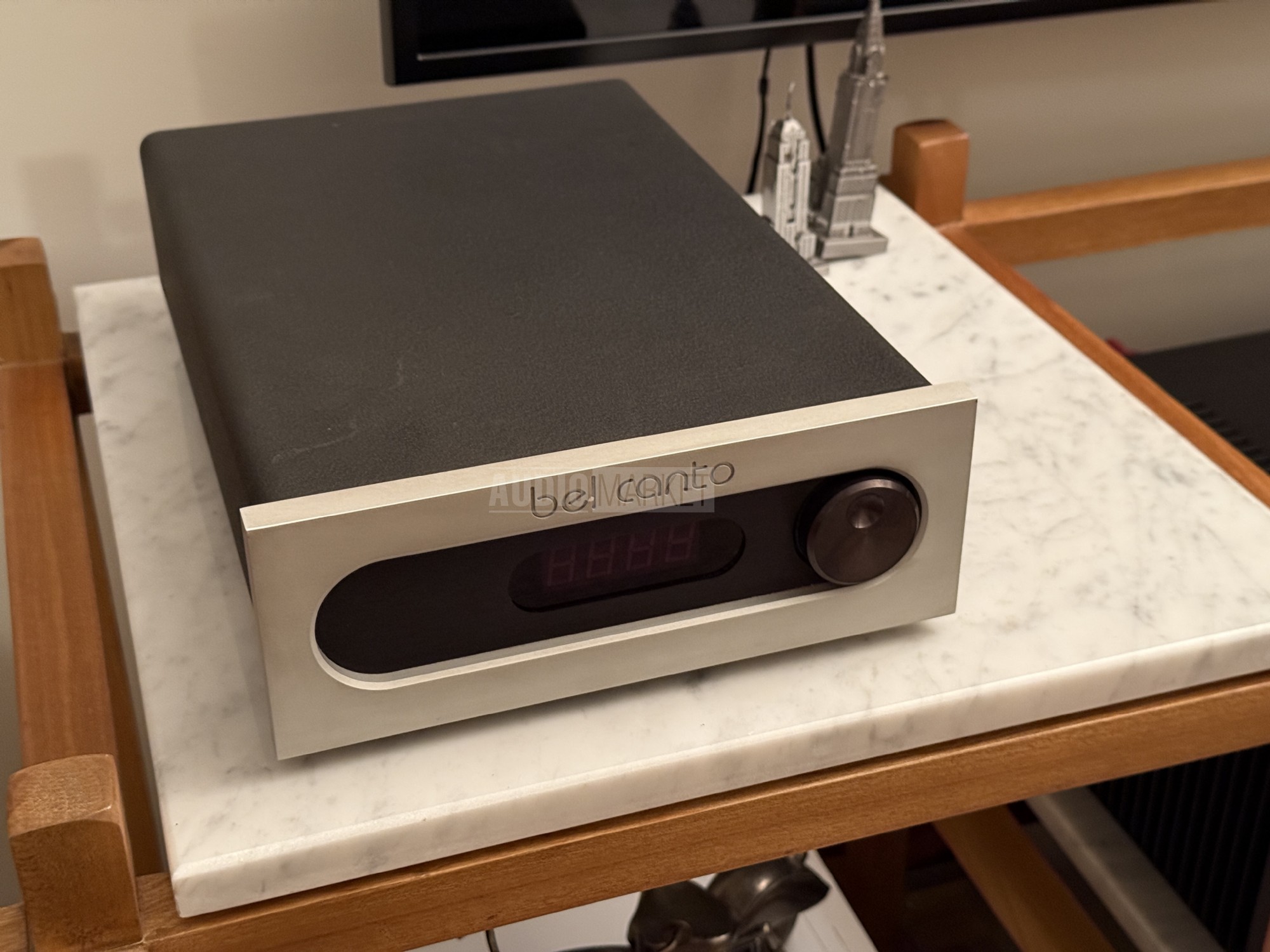

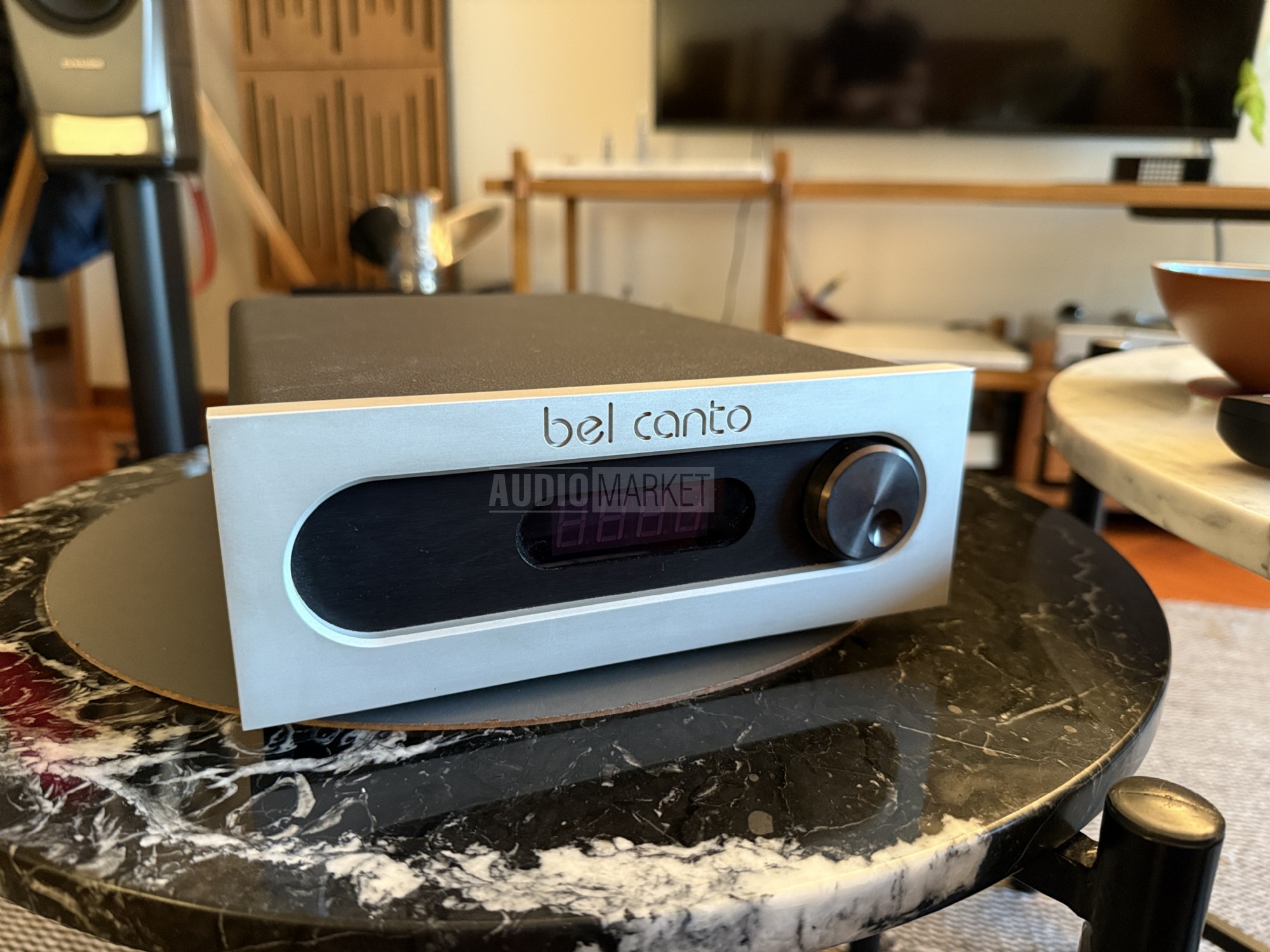

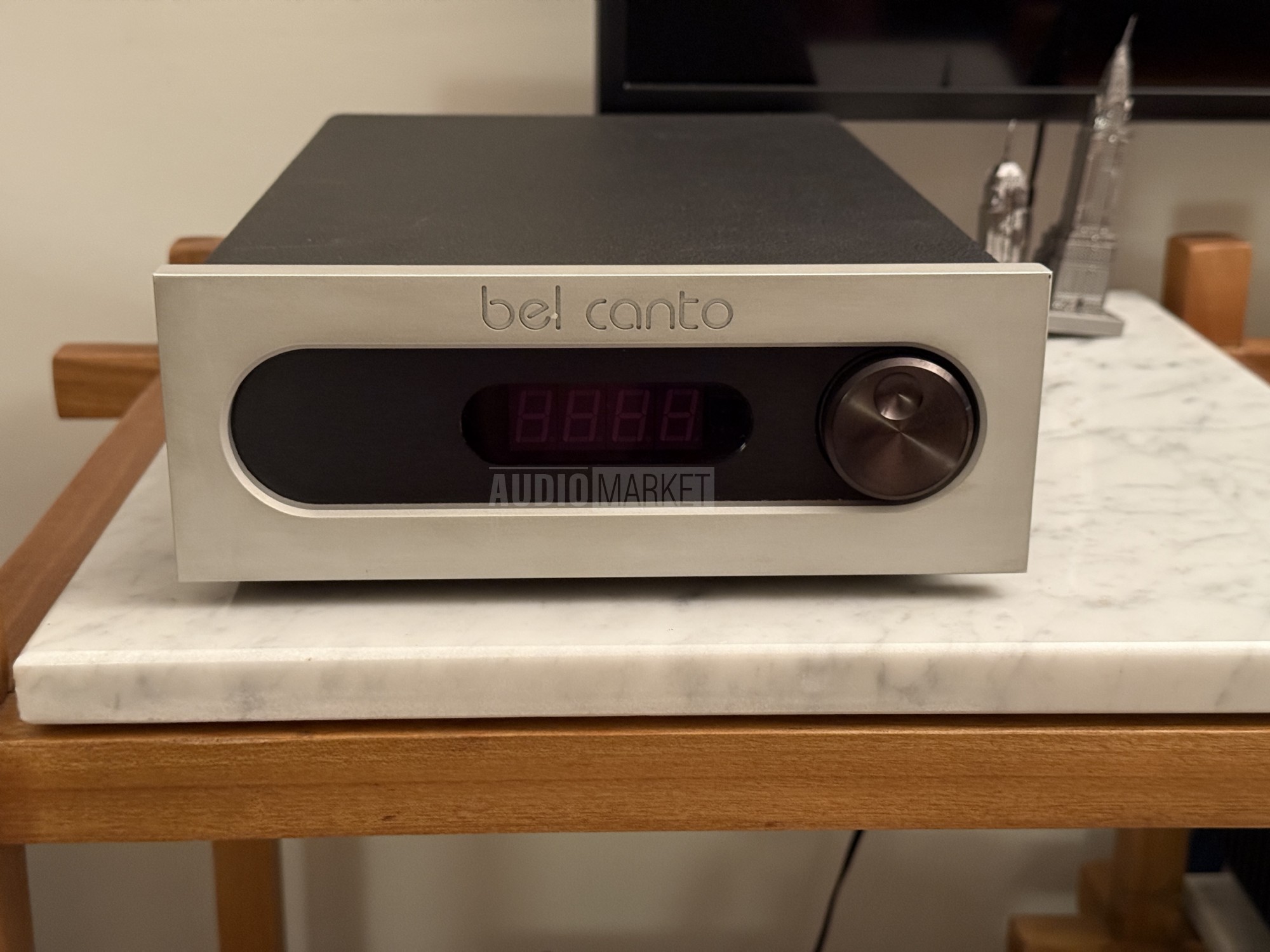

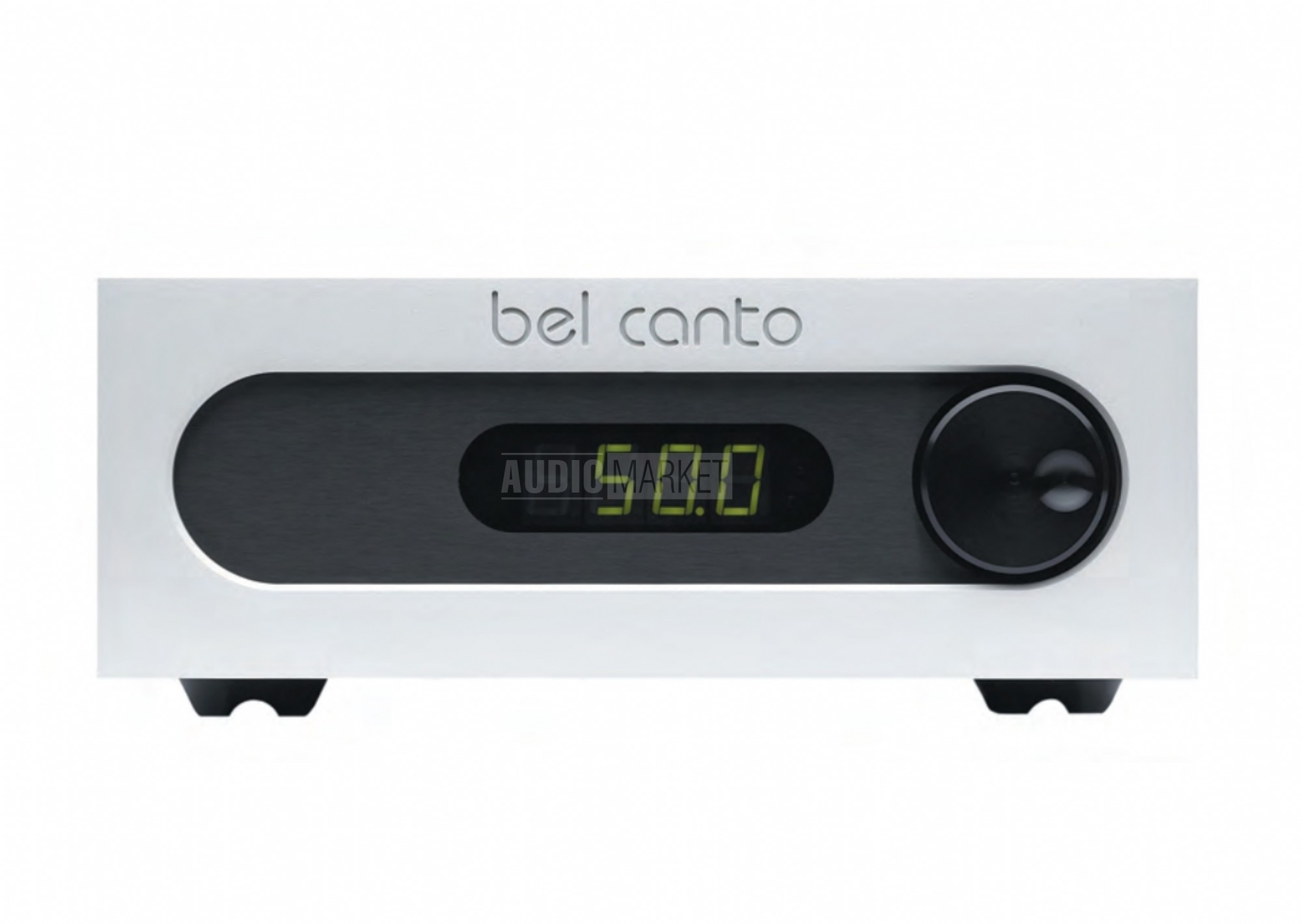

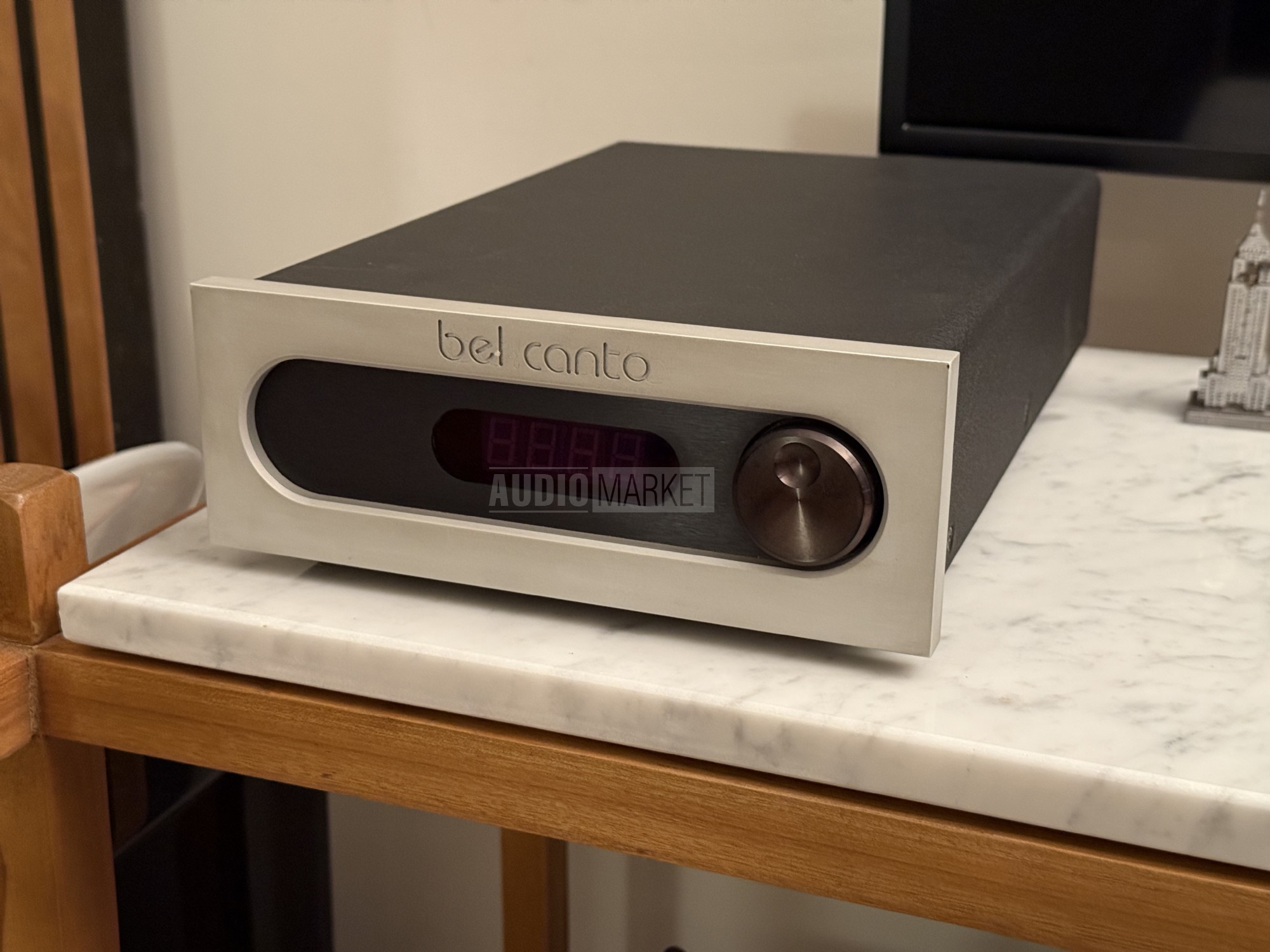

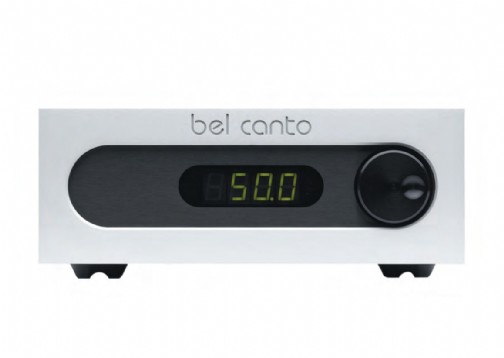

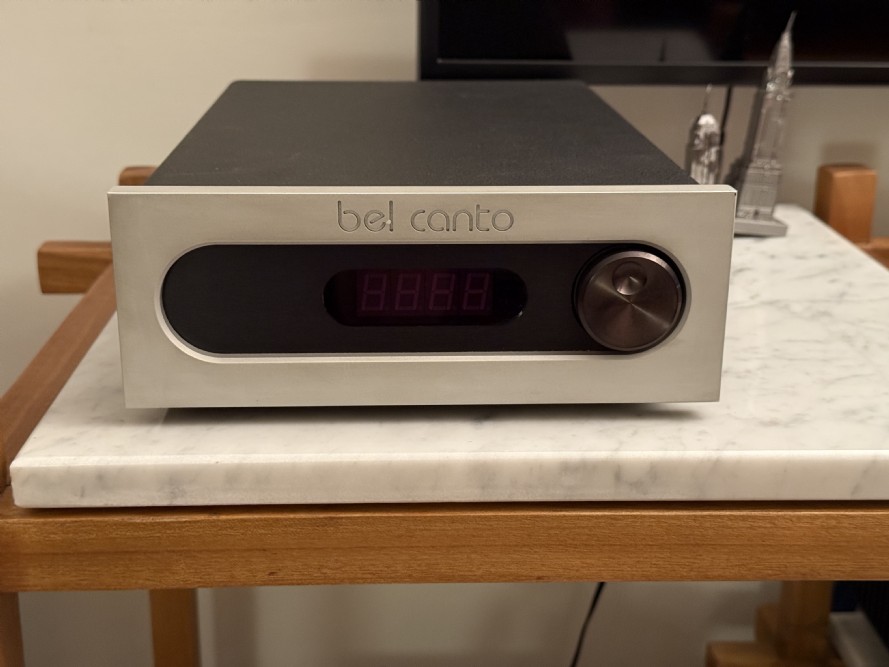

Amplificador Integrado Bel Canto S300iu e.One
DAC USB

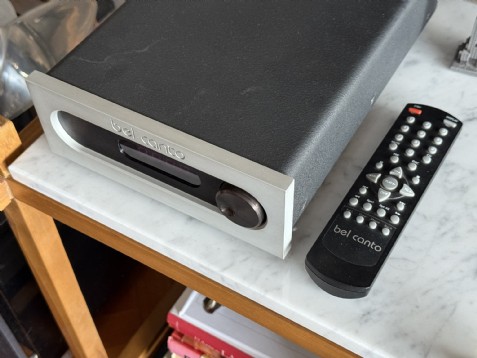

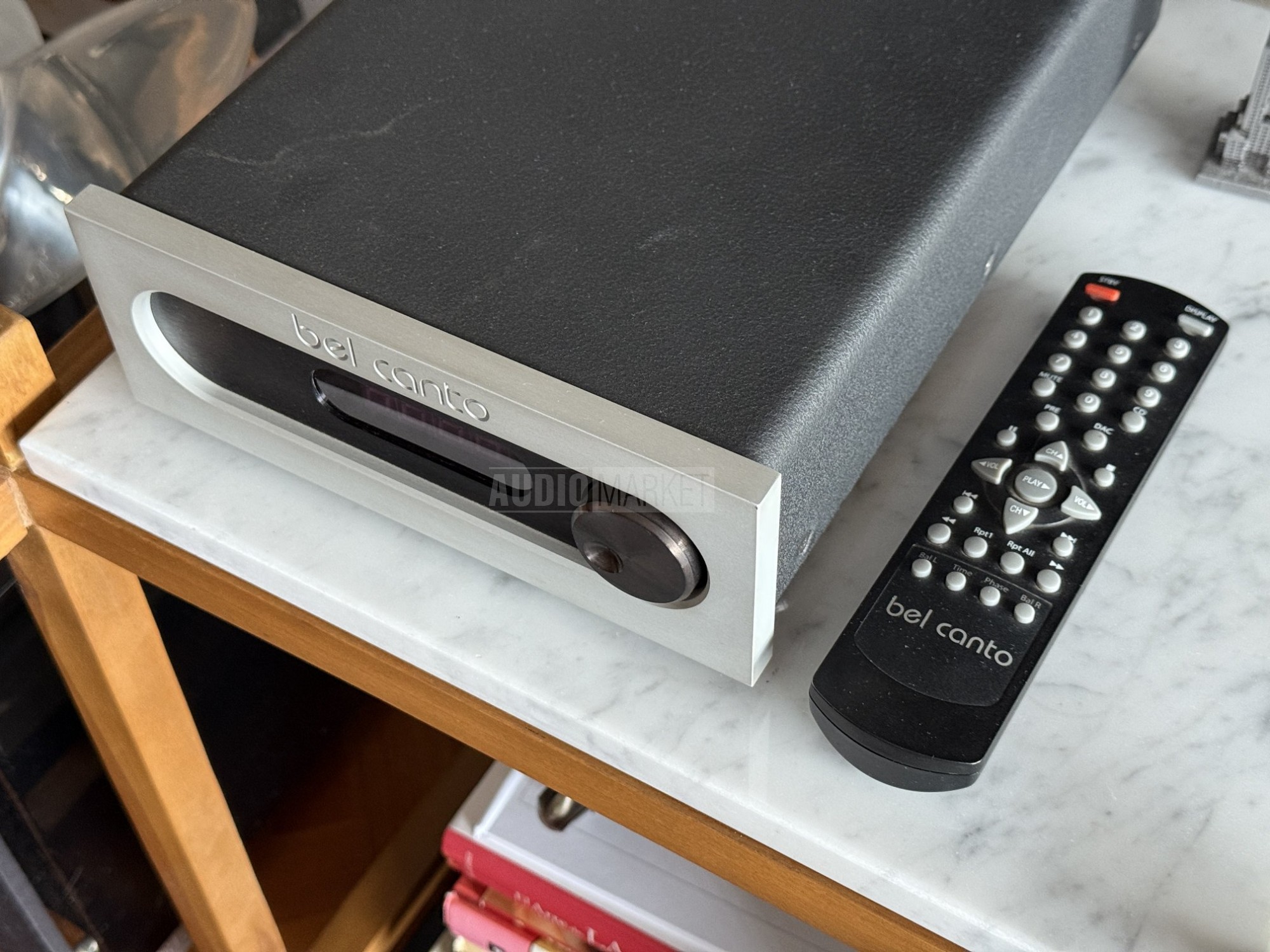

Incluye control remoto original
220v
Impecable
Se retira por Nuñez, CABA
Preamplifier Section:
Bandwidth • DC-200KHz
Volume setting for unity gain • 80.0
Signal to Noise Ratio @ 2 Volt RMS • >95 dB A weighted, 20Hz-20kHz
Input overload • 10 V RMS
Output Impedance • 500 Ohms Single Ended,
Input Impedance • 10K Ohms Single Ended
Maximum Gain • 20dB/10X
Maximum Preamp Output Level • 9.5 V RMS
Amplifier Section:
Power Output • 150W/channel 8 ohms, 300W/channel 4 ohms
Minimum rated load impedance • 4 ohms
Frequency Response • 20Hz-20kHz, +/- 0.5dB
THD+N • 0.01%, 1W, 1KHz, 4 ohms
IMD (CCIF) • 0.002%, 1W, 14:15KHz, 4 ohms
Output Noise • 90uV A-weighted 20Hz-20KHz
Voltage Gain • 27dB
Damping Factor • >1000
Output Impedance • <8 milliohms
Dynamic Range • 111dB

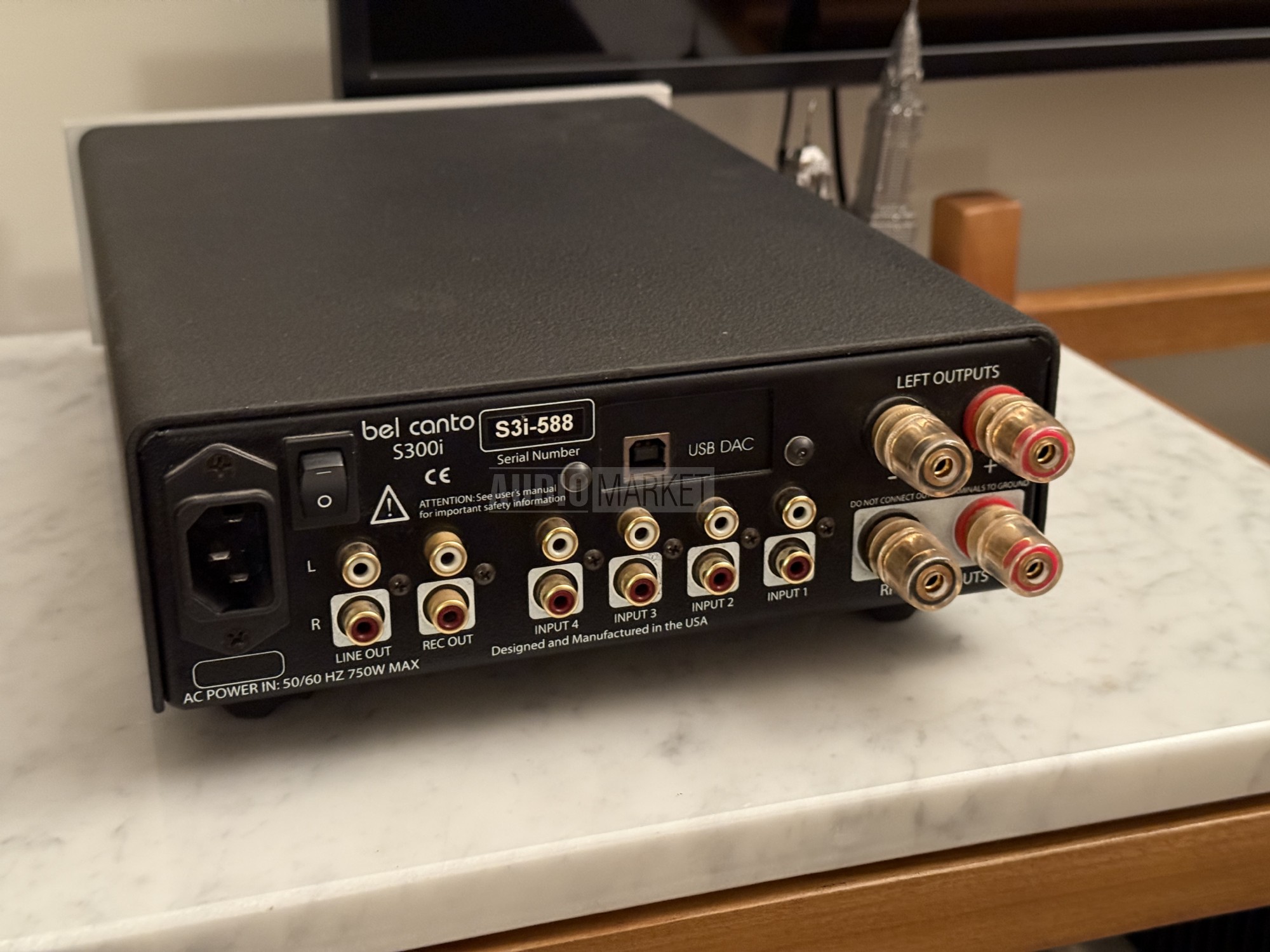

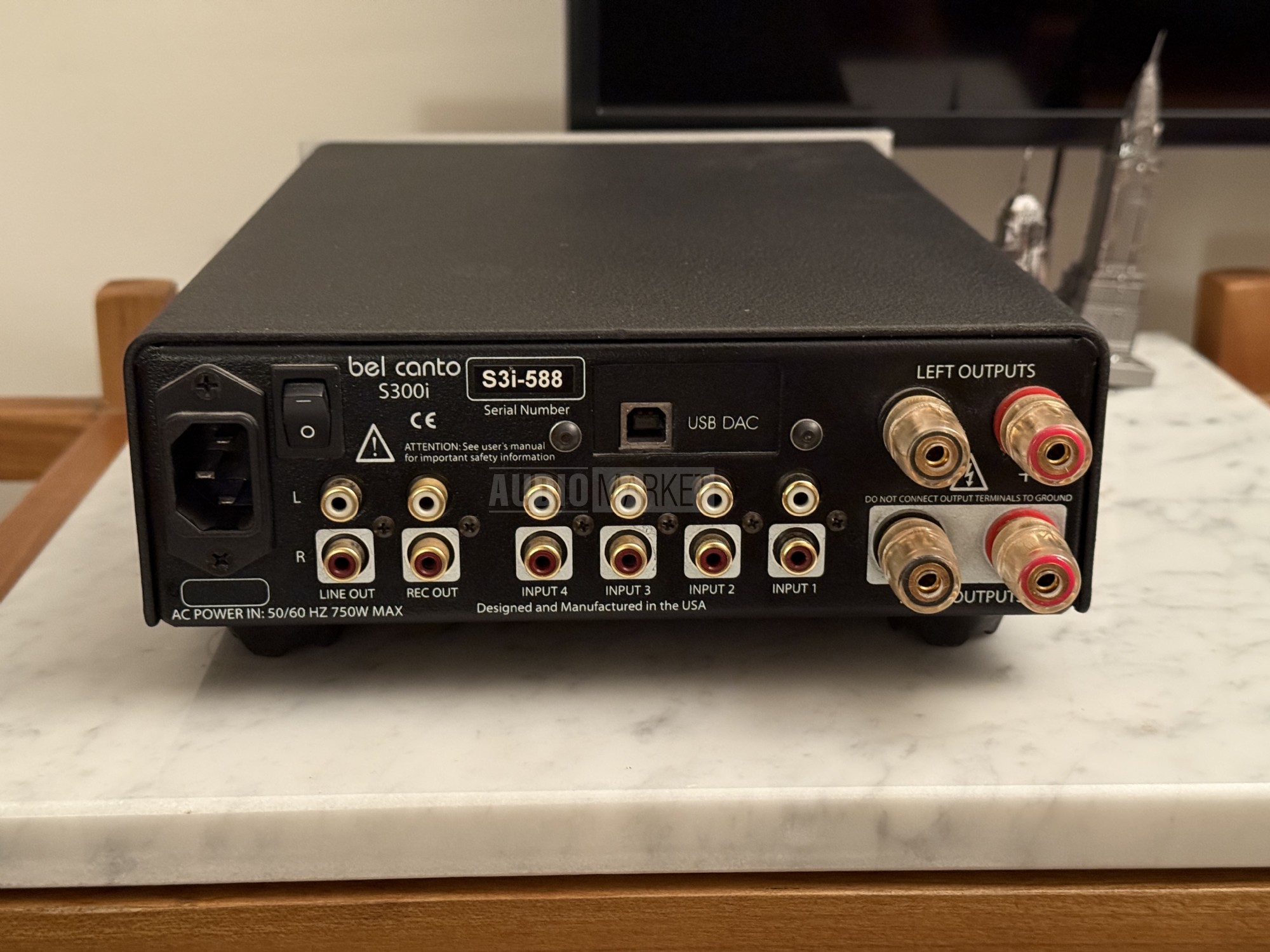

Output Connection • 2 sets Safety 5-way Binding Posts
Idle power draw • 15 Watts
Power Requirements • 100-120 VAC 50-60 Hz or 220-240 VAC 50-60 Hz
Dimensions • 8.5” W x 12.5” D x 3” H (216 mm x 318 mm x 75 mm)
Weight: • 12lbs. (5.5 kg)
