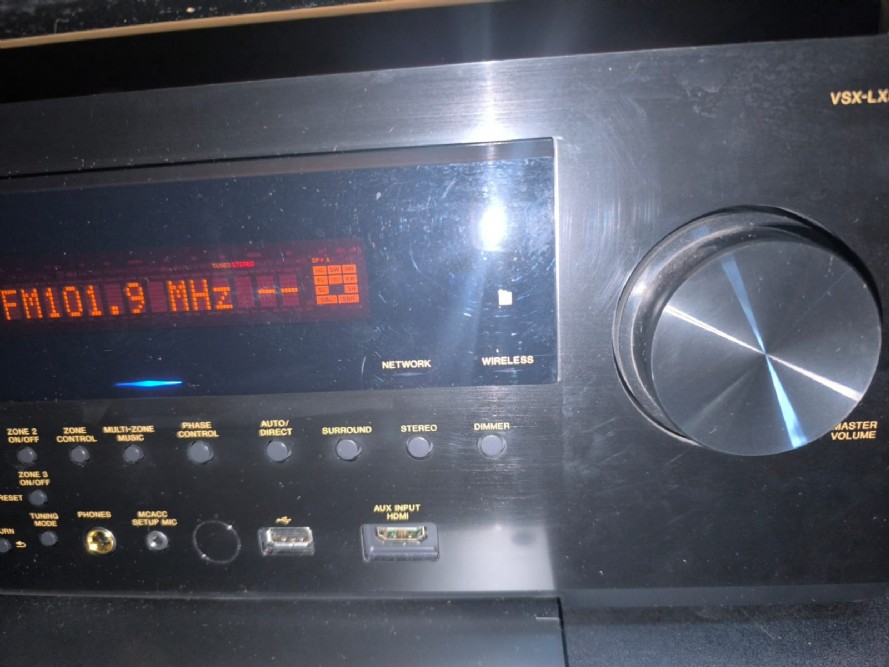

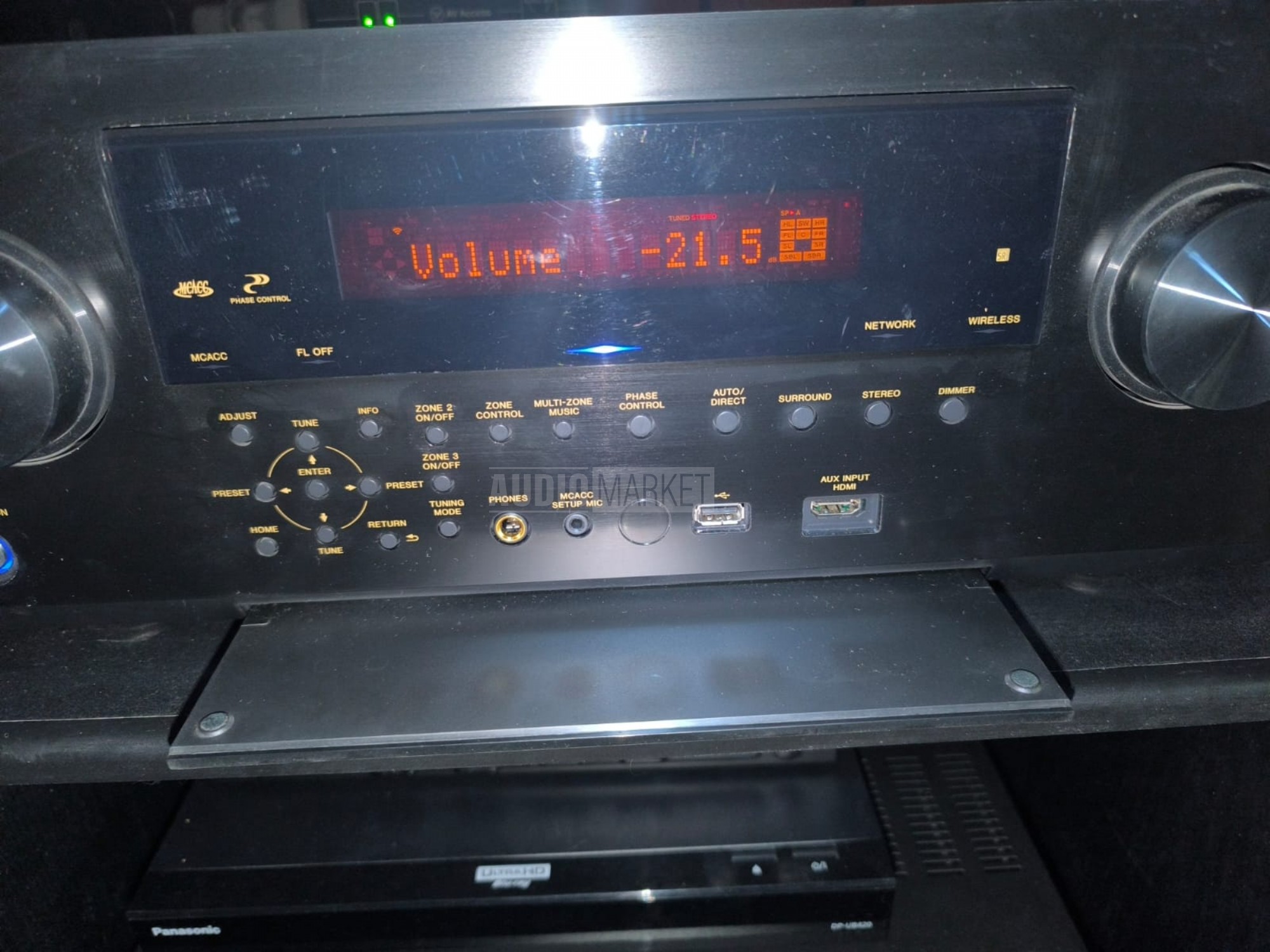

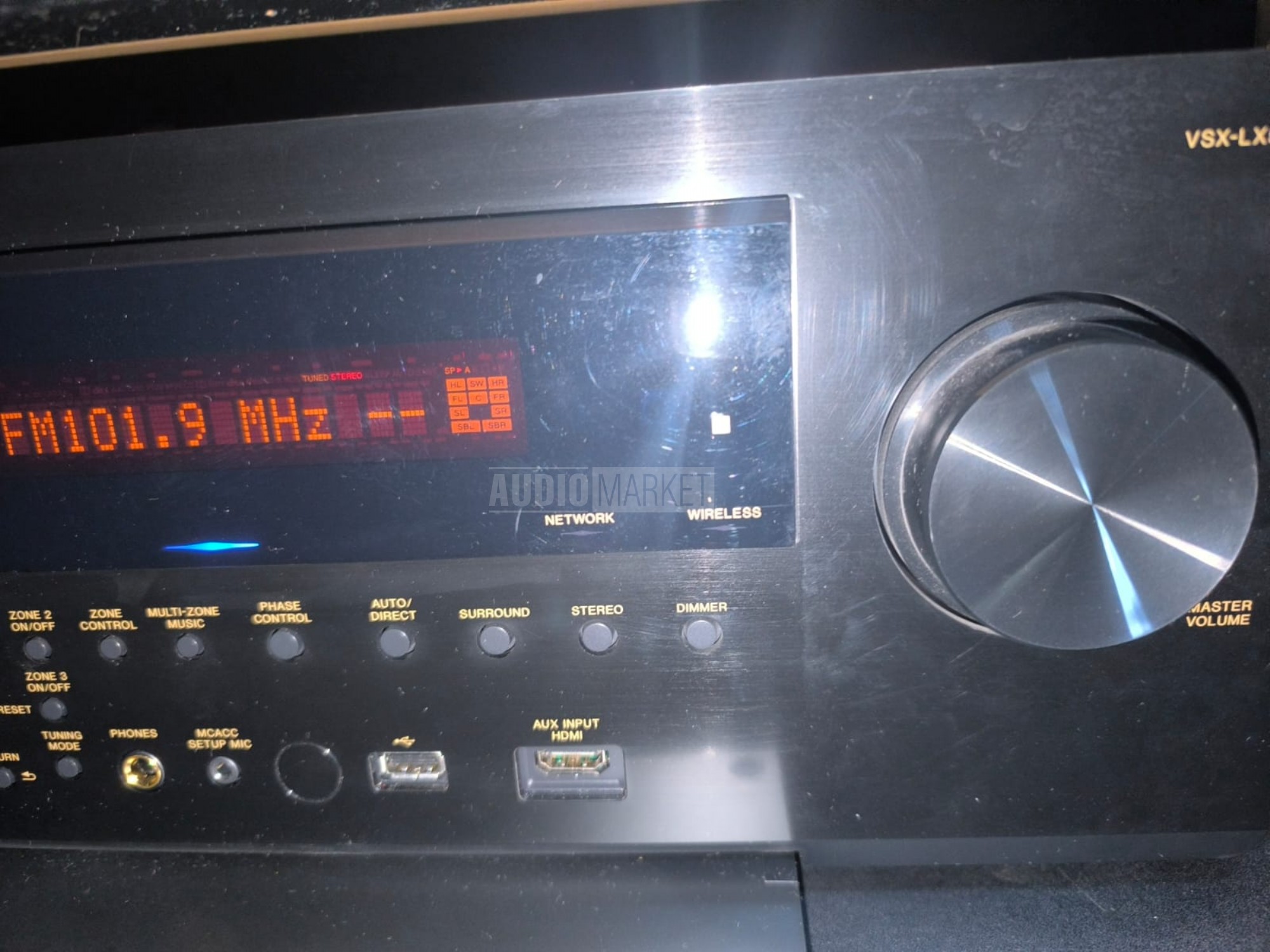

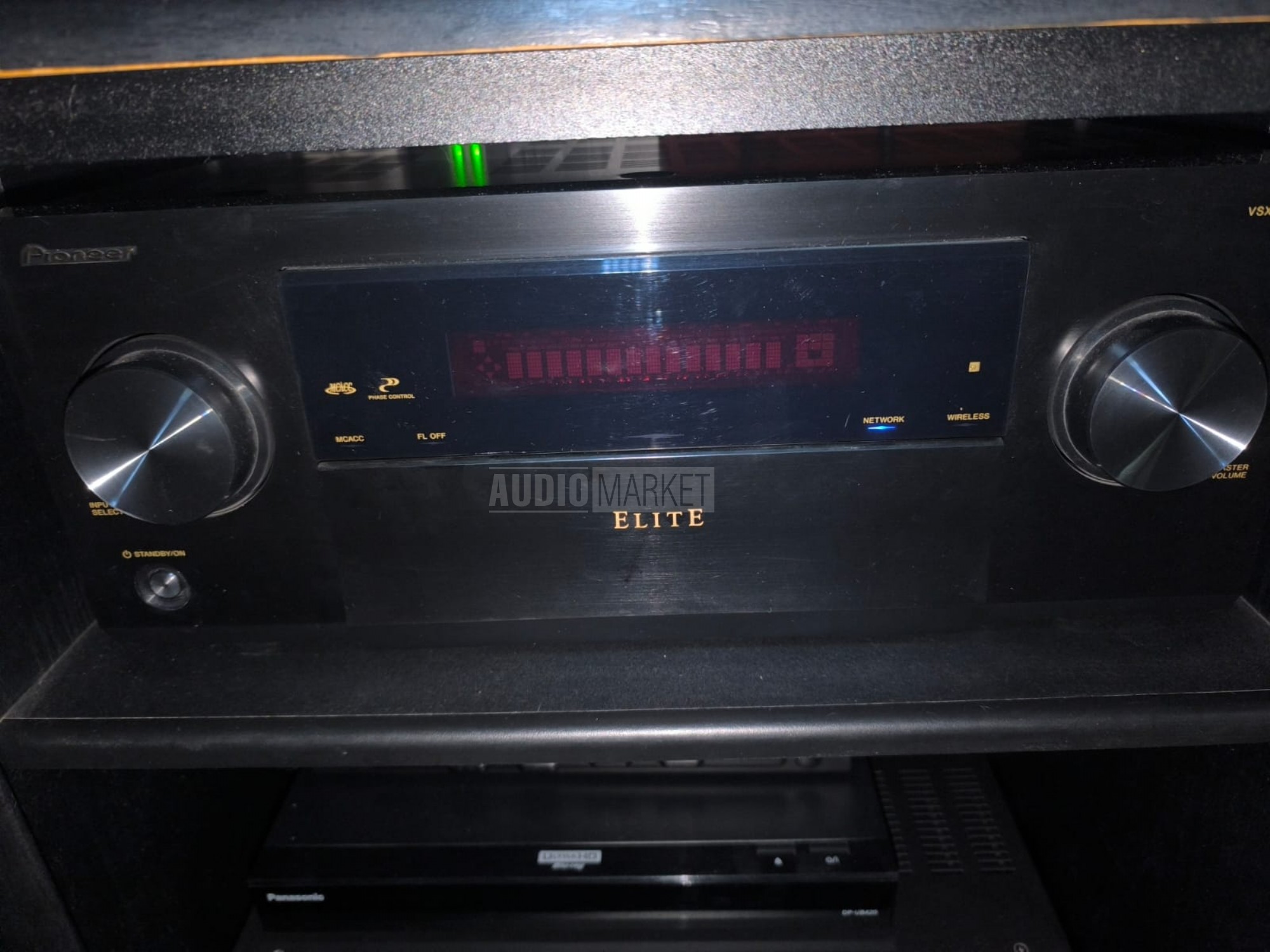

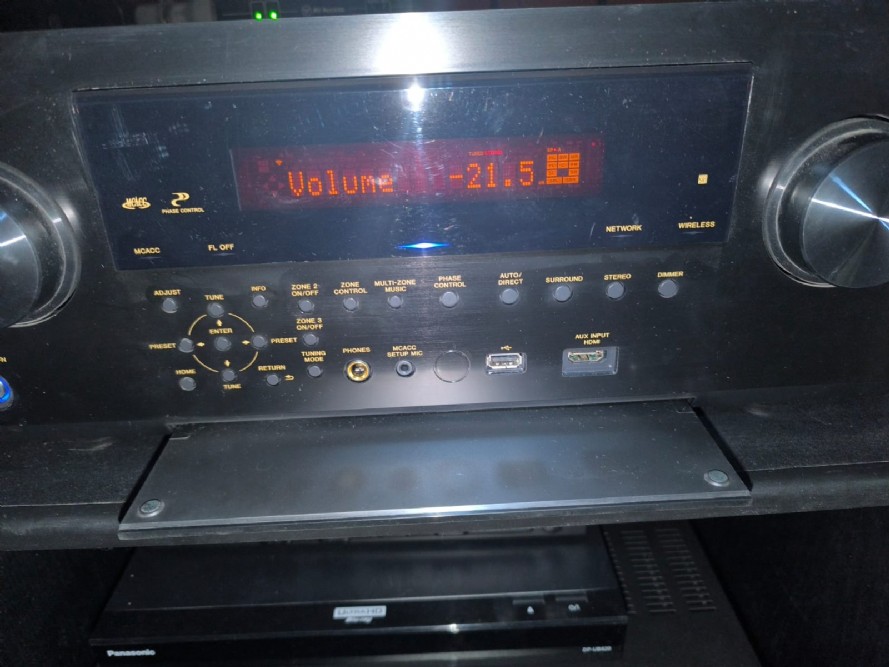

Pioneer VSX-LX 503

Descripción

TRAIDO DESDE USA EN 2019 POR MI. UNICA MANO.
MUY POCO USO.
110 V. SE ENTREGA CON TRANSFORMADOR 1000 WATTS.
ADJUNTO MANUAL PARA TODAS SUS ESPECIFICACIONES.
Supported Audio Formats
2 ch linear PCM:
32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, 16/20/24 bit
Multi-channel linear PCM:
Maximum 7.1 channels, 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz,
192 kHz, 16/20/24 bit
Bitstream:
Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS:X, DTSHD
High Resolution Audio, DTS-HD Master Audio
DSD:
Supported sampling rates: 2.8 MHz
Your Blu-ray Disc/DVD player must also support the HDMI output of the above
audio formats.
Supported resolutions
HDMI IN1 to IN6:
• Copyright protection technology: HDCP1.4/HDCP2.2
• Color space (Color Depth):
––720×480i 60Hz, 720×576i 50Hz, 720×480p 60Hz, 720×576p 50Hz,
1920×1080i 50/60Hz, 1280×720p 24/25/30/50/60Hz, 1680×720p
24/25/30/50/60Hz, 1920×1080p 24/25/30/50/60Hz, 2560×1080p
24/25/30/50/60Hz, 4K (3840×2160p) 24/25/30Hz, 4K SMPTE
(4096×2160p) 24/25/30Hz : RGB/YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2
(12 bit)
––4K (3840×2160p) 50/60Hz, 4K SMPTE (4096×2160p) 50/60Hz : RGB/
YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit), YCbCr4:2:0 (8/10/12 bit)
AUX INPUT HDMI (front):
• Copyright protection technology: HDCP1.4/HDCP2.2
• Color space (Color Depth):
––720×480i 60Hz, 720×576i 50Hz, 720×480p 60Hz, 720×576p 50Hz,
1920×1080i 50/60Hz, 1280×720p 24/25/30/50/60Hz, 1680×720p
24/25/30/50/60Hz, 1920×1080p 24/25/30/50/60Hz, 2560×1080p
24/25/30/50/60Hz : RGB/YCbCr4:4:4 (8/10/12 bit), YCbCr4:2:2 (12 bit)
––4K (3840×2160p) 24/25/30Hz, 4K SMPTE (4096×2160p) 24/25/30Hz :
RGB/YCbCr4:4:4 (8 bit), YCbCr4:2:2 (12 bit)
––4K (3840×2160p) 50/60Hz, 4K SMPTE (4096×2160p) 50/60Hz :
YCbCr4:2:0 (8 bit)
171 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫ Connections ≫ Playback ≫ Setup ≫
General Specifications
„„Amplifier Section
Rated Output Power (FTC) (North American)
With 8 ohm loads, both channels driven, from 20-20,000 Hz; rated 120
watts per channel minimum RMS power, with no more than 0.08% total
harmonic distortion from 250 milliwatts to rated output.
Rated Output Power (IEC) (Others)
9 ch × 180 W at 6 ohms, 1 kHz, 1 ch driven of 1% THD
Maximum Effective Output Power (North American)
230 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD
Maximum Effective Output Power (JEITA) (Asian and Australian)
9 ch × 215 W at 6 ohms, 1 kHz, 1 ch driven of 10% THD
Dynamic Power (*)
* IEC60268-Short-term maximum output power
250 W (3 Ω, Front)
220 W (4 Ω, Front)
130 W (8 Ω, Front)
THD+N (Total Harmonic Distortion+Noise)
0.08% (20 Hz - 20,000 Hz, half power)
Input Sensitivity and Impedance
200 mV/47 kΩ (LINE (RCA))
3.5 mV/47 kΩ (PHONO MM)
Rated RCA Output Level and Impedance
1 V/470 Ω (PRE OUT)
1 V/470 Ω (SUBWOOFER PRE OUT)
1 V, 200 mV/470 Ω (ZONE 2 PRE/LINE OUT)
1 V, 200 mV/470 Ω (ZONE 3 PRE/LINE OUT)
Phono Maximum Input Signal Voltage
70 mV (MM 1 kHz 0.5%)
Frequency Response
5 Hz - 100 kHz/+1 dB, –3 dB (Direct/Pure Direct)
Tone Control Characteristics (MAIN)
±10 dB, 20 Hz (BASS)
±10 dB, 20 kHz (TREBLE)
Tone Control Characteristics (ZONE 2)
±10 dB, 100 Hz (BASS)
±10 dB, 10 kHz (TREBLE)
Signal to Noise Ratio
106 dB (IHF-A, LINE IN, SP OUT)
80 dB (IHF-A, PHONO IN, SP OUT)
Speaker Impedance
4 Ω - 16 Ω
Headphone Rated Output
85 mW + 85 mW (32 Ω, 1 kHz, 10% THD)
Supported impedance of Headphones
8 Ω - 600 Ω
Headphones Frequency Response
10 Hz - 100 kHz
„„Video Section
Signal level
1 Vp-p/75 Ω (Composite Video)
1 Vp-p/75 Ω (Component Video Y)
0.7 Vp-p/75 Ω (Component Video Pb/Pr)
Maximum resolution supported by component video
480i/576i
„„Tuner Section
FM Tuning Frequency Range
87.5 MHz - 107.9 MHz (North American)
87.5 MHz - 108.0 MHz, RDS (Others)
50dB quieting sensitivity (FM MONO)
1.56 μV, 15.0 dBf (IHF, 1kHz, 100% MOD)
AM Tuning Frequency Range
530 kHz - 1710 kHz (North American)
522/530 kHz - 1611/1710 kHz (Others)
Preset Channel
40
172 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫ Connections ≫ Playback ≫ Setup ≫
„„Network Section
Ethernet LAN
10BASE-T/100BASE-TX
Wireless LAN
IEEE 802.11 a/b/g/n standard
(Wi-Fi® standard)
5 GHz/2.4 GHz band
„„BLUETOOTH Section
Communication system
BLUETOOTH Specification version 4.1+LE
Frequency band
2.4 GHz band
Modulation method
FHSS (Freq Hopping Spread Spectrum)
Compatible BLUETOOTH profiles
A2DP 1.2
AVRCP 1.3
HOGP-Host (Client)
HOGP-HID Device (Server)
HID Service (HIDS)
Supported Codecs
SBC
AAC
Transmission range (A2DP)
20 Hz - 20 kHz (Sampling frequency 44.1 kHz)
Maximum communication range
Line of sight approx. 15 m (*)
* The actual range will vary depending on factors such as obstacles between
devices, magnetic fields around a microwave oven, static electricity,
cordless phone, reception sensitivity, antenna's performance, operating
system, software application, etc.
„„General
Power Supply
AC 120 V, 60 Hz (North American)
AC 220 - 240 V, 50/60 Hz (Others)
Power Consumption
850 W (North American)
870 W (Others)
0.15 W (Full Standby mode)
1.5 W (Network Standby (wired)) (North American)
1.6 W (Network Standby (wired)) (Others)
1.8 W (Network Standby (wireless)) (North American)
1.9 W (Network Standby (wireless)) (Others)
1.5 W (Bluetooth Wakeup)
0.15 W (HDMI CEC)
2 W (Standby mode (ALL ON)) (North American)
2.2 W (Standby mode (ALL ON)) (Others)
70 W (No-sound)
6.1 W (HDMI Standby Through) (North American)
6.2 W (HDMI Standby Through) (Others)
Dimensions (W × H × D)
435 mm × 185 mm × 386 mm
17-1/8" × 7-5/16" × 15-3/16"
Weight
13.0 kg (28.7 lbs.)
Maximum radio-frequency power transmitted in the frequency band(s)
2400 MHz - 2483.5 MHz (20 dBm (e.i.r.p))
5150 MHz - 5350 MHz (22 dBm (e.i.r.p))
5470 MHz - 5725 MHz (22 dBm (e.i.r.p))
„„HDMI
Input
IN1 (BD/DVD), IN2 (CBL/SAT), IN3 (GAME), IN4 (STRM BOX), IN5, IN6,
AUX INPUT HDMI (front)
Output
OUT MAIN (ARC), OUT ZONE 2/SUB
173 Front Panel≫ Rear Panel≫ Remote≫
Contents ≫ Connections ≫ Playback ≫ Setup ≫
Supported
Deep Color, x.v.Color™, Lip Sync, Audio Return Channel, 3D, 4K, CEC,
Extended Colorimetry (sYCC601, Adobe RGB, Adobe YCC601), Content
Type, HDR, Dolby Vision
Audio Format
Dolby Atmos, Dolby TrueHD, Dolby Digital, Dolby Digital Plus, DTS, DTS:X,
DTS-HD Master Audio, DTS-HD High Resolution Audio, DTS 96/24, DTSES,
DTS Express, DSD, PCM
HDCP version
2.2
Maximum Video Resolution
4k 60 Hz (YCbCr 4:4:4)
„„Video Inputs
Component
IN1 (BD/DVD)
Composite
IN1 (CBL/SAT), IN2 (STRM BOX)
„„Supported input resolutions
HDMI input
4K, 1080p/24, 1080p, 1080i, 720p, 480p/576p
Component input
480i/576i
Composite input
480i/576i
• The output from the HDMI OUT jack to the TV is the same resolution as the
input. When using a TV that supports 4K, 1080p HDMI video signals can also
be output as 4K.
„„Audio Inputs
Digital
OPTICAL 1 (BD/DVD), 2 (TV)
COAXIAL (CD)
Analog
BD/DVD, CBL/SAT, STRM BOX, CD, PHONO
„„Audio Outputs
Analog
PRE OUT (FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R,
SURROUND BACK L/R, 2 SUBWOOFER, HEIGHT 2 L/R)
ZONE2 PRE/LINE OUT
ZONE3 PRE/LINE OUT
Speaker Outputs
FRONT L/R, CENTER, SURROUND L/R, HEIGHT 1 L/R, SURROUND
BACK L/R or HEIGHT 2 L/R or ZONE 3 L/R, ZONE 2 L/R (North American
models support banana plugs.)
Phones
PHONES (Front, ø 6.3 mm, 1/4")
„„Others
Setup Mic: 1 (Front)
USB: 2 (Ver. 2.0, 5 V/500 mA)
Ethernet: 1
RS232: 1
IR IN: 1
IR OUT: 1
12V TRIGGER OUT: 2 (A: 100 mA, B: 25 mA)
„„Power consumption in standby mode
• In the following cases, the power consumption in standby mode may reach up
to a maximum of 14 W:
––When "Network Standby" is set to "On"
––When "HDMI CEC" is set to "On"
––When "HDMI Standby Through" is set to other than "Off"
––When "Bluetooth Wakeup" is set to "On"
––When "USB Power Out at Standby" is set to "On"
Specifications and features are subject to change without notice.
